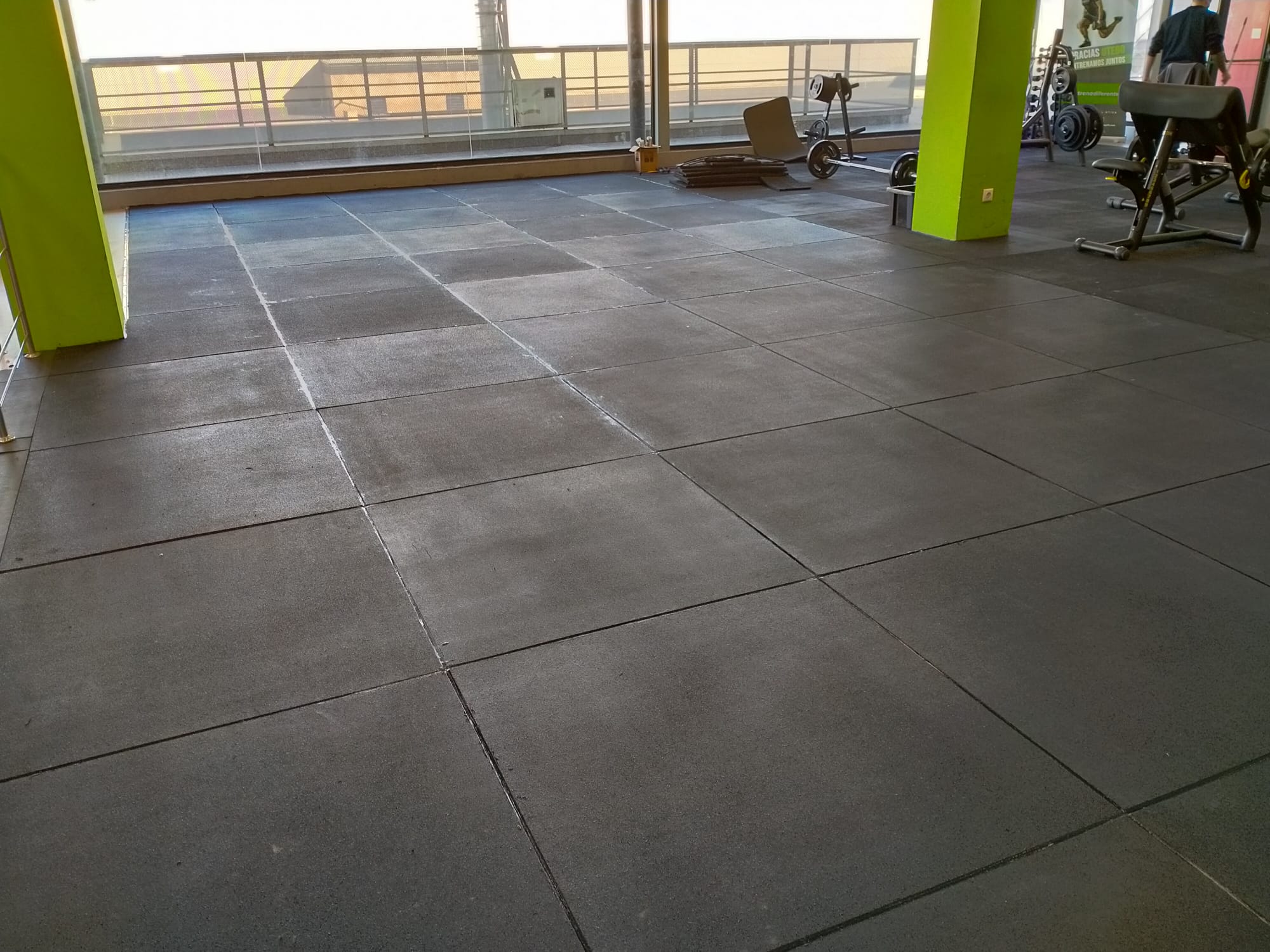

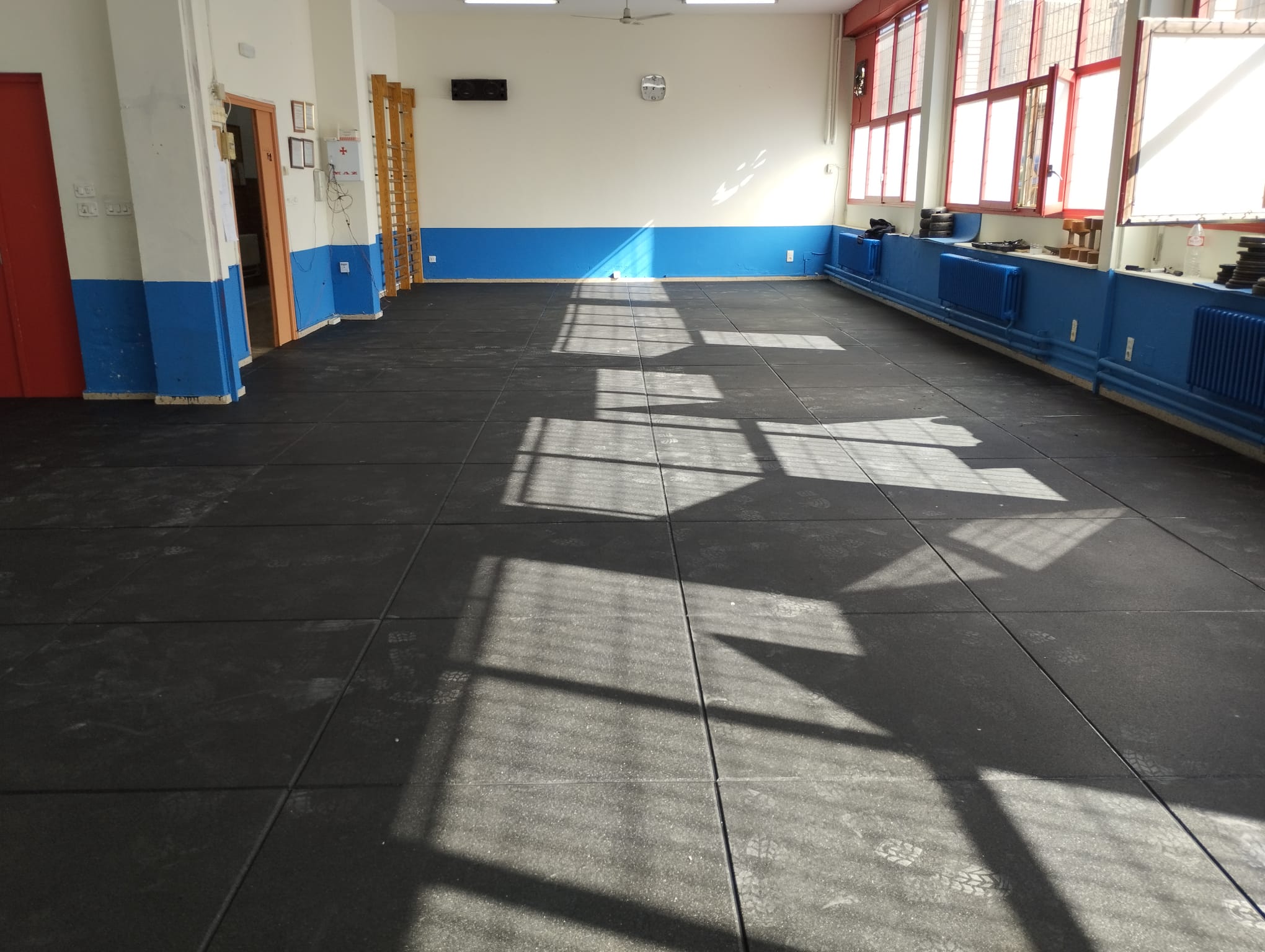

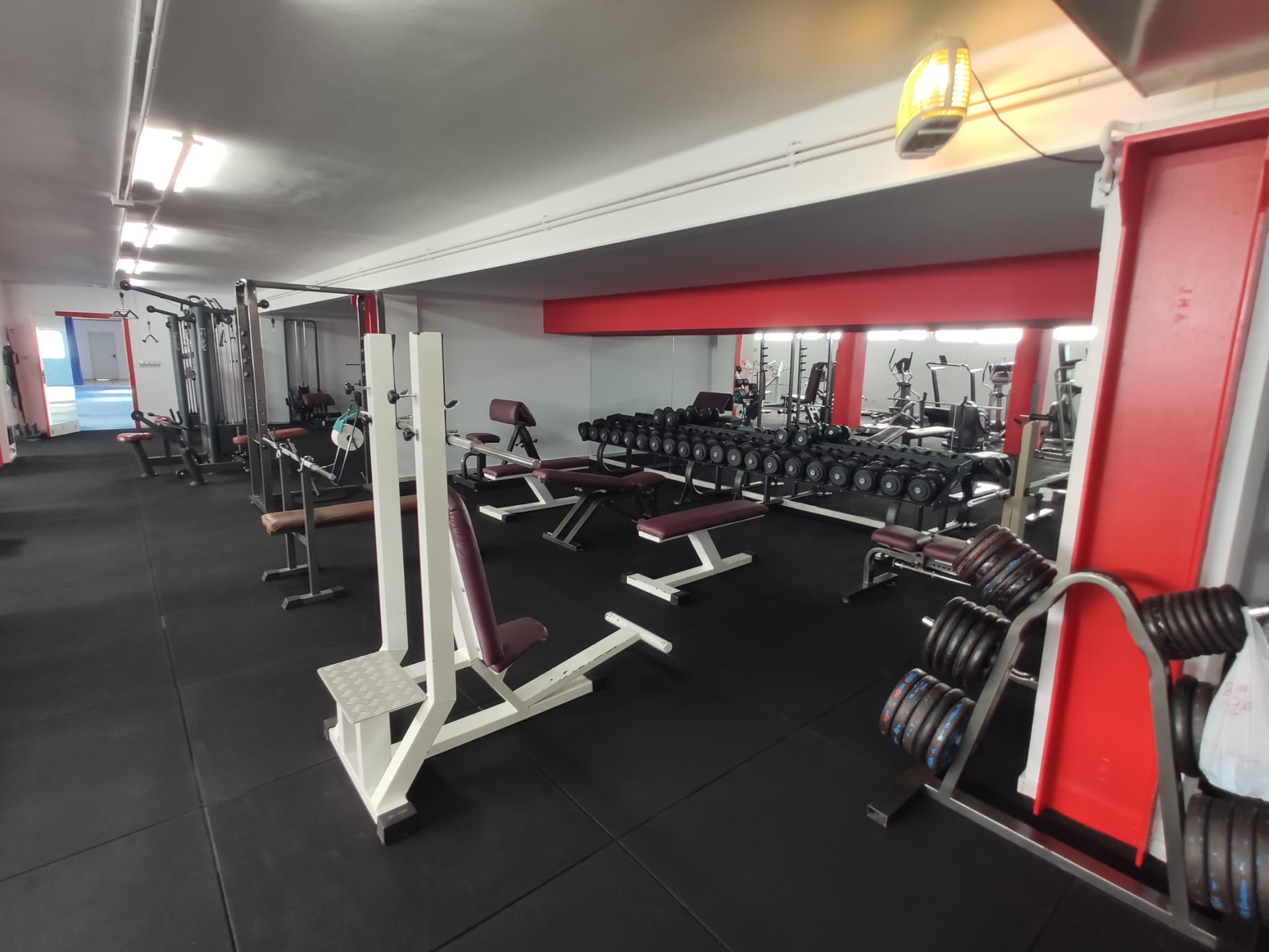

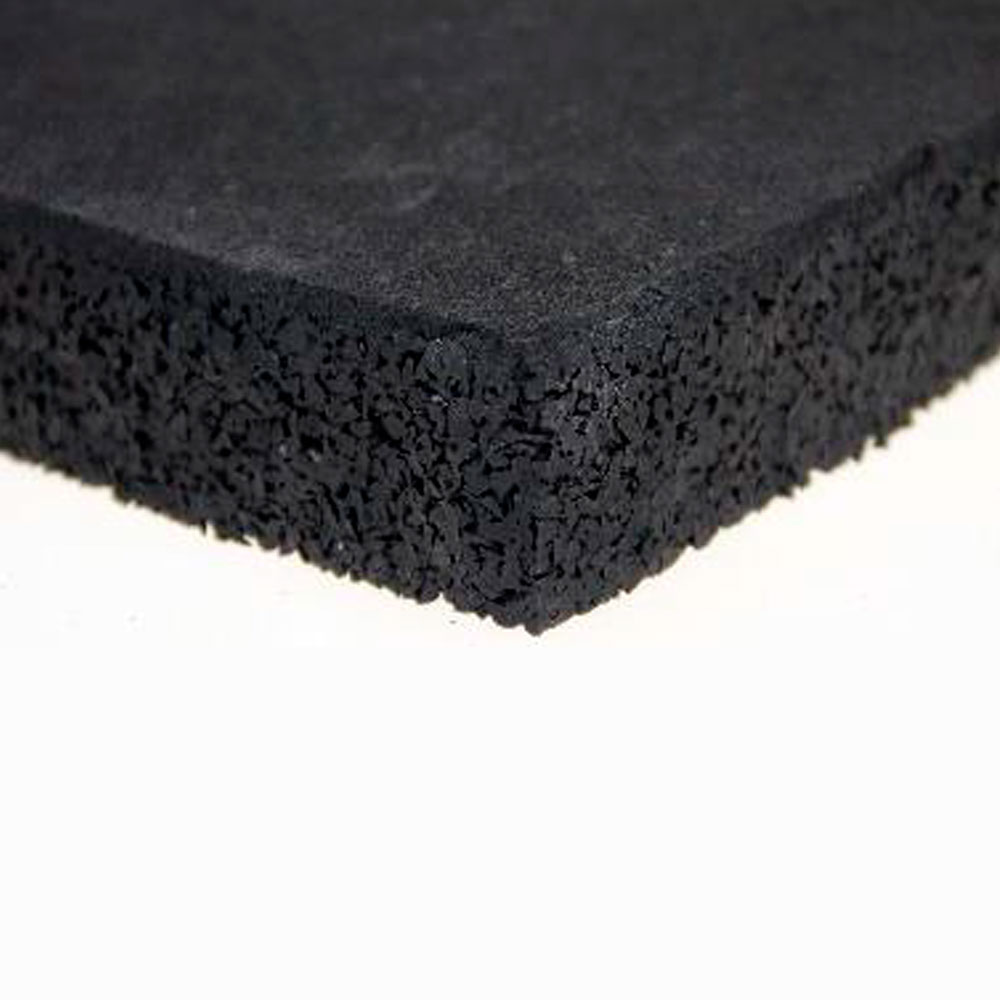

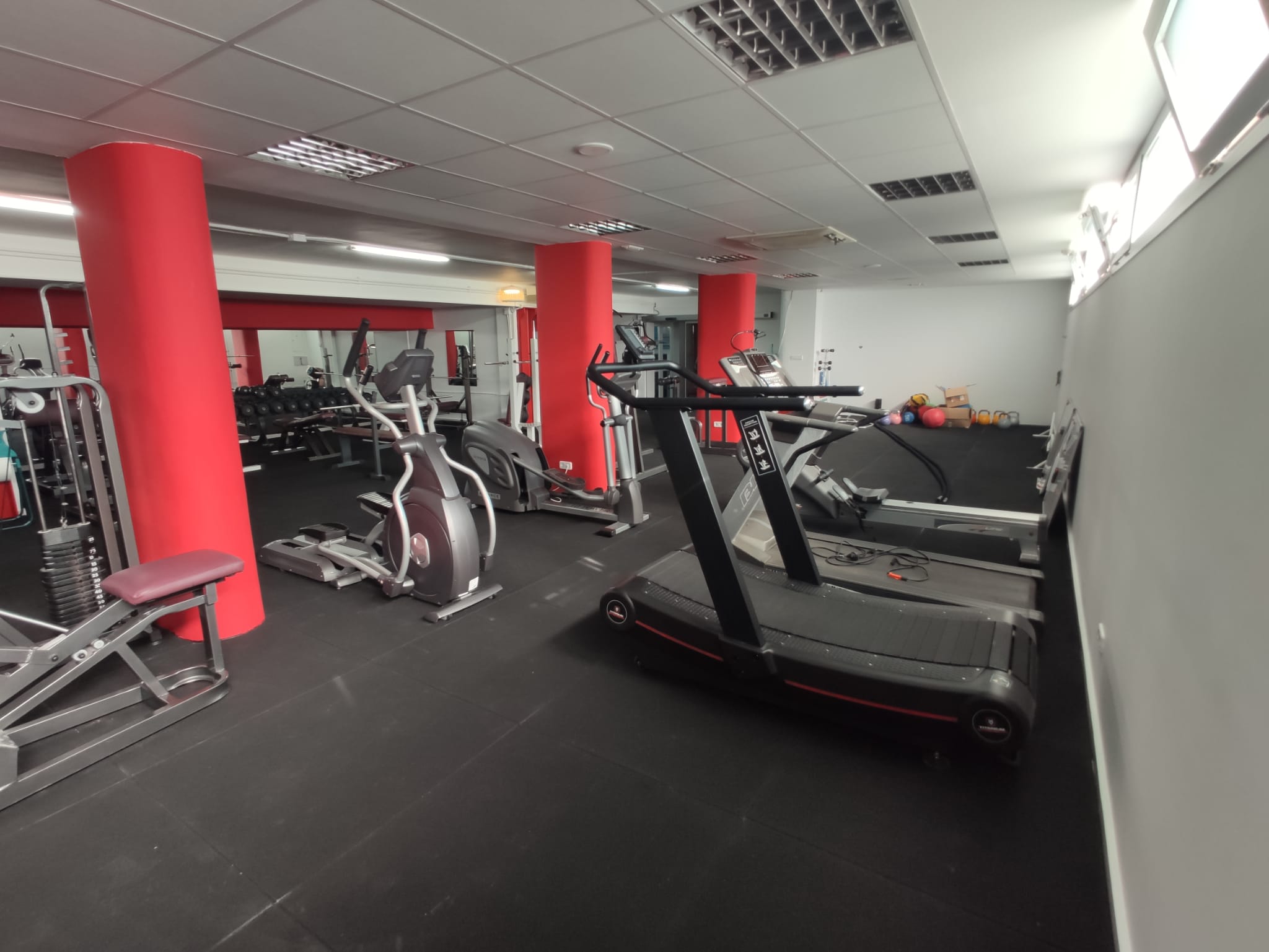

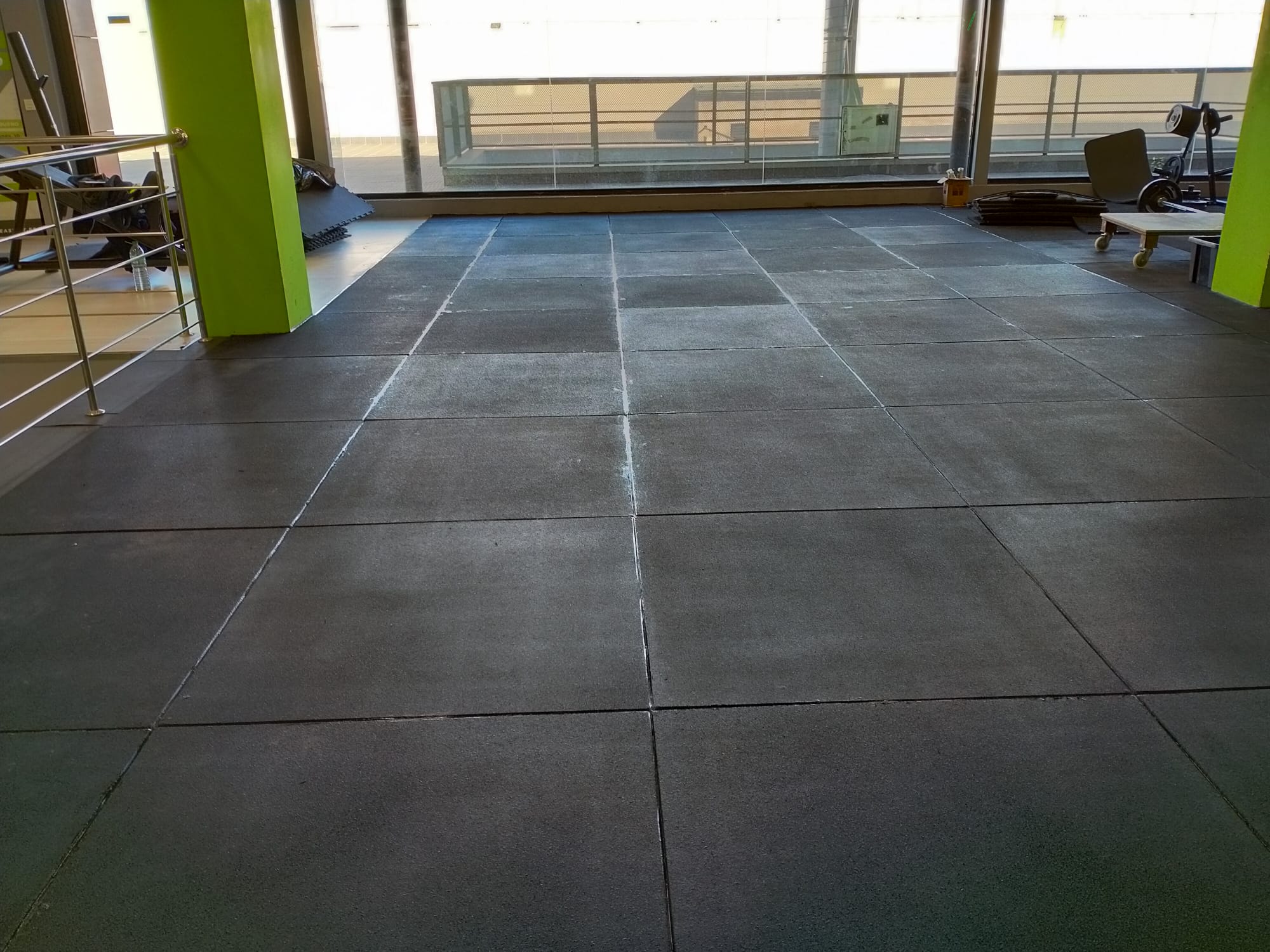

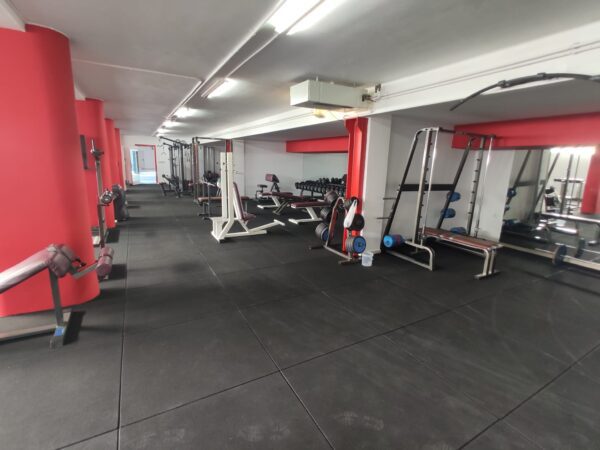

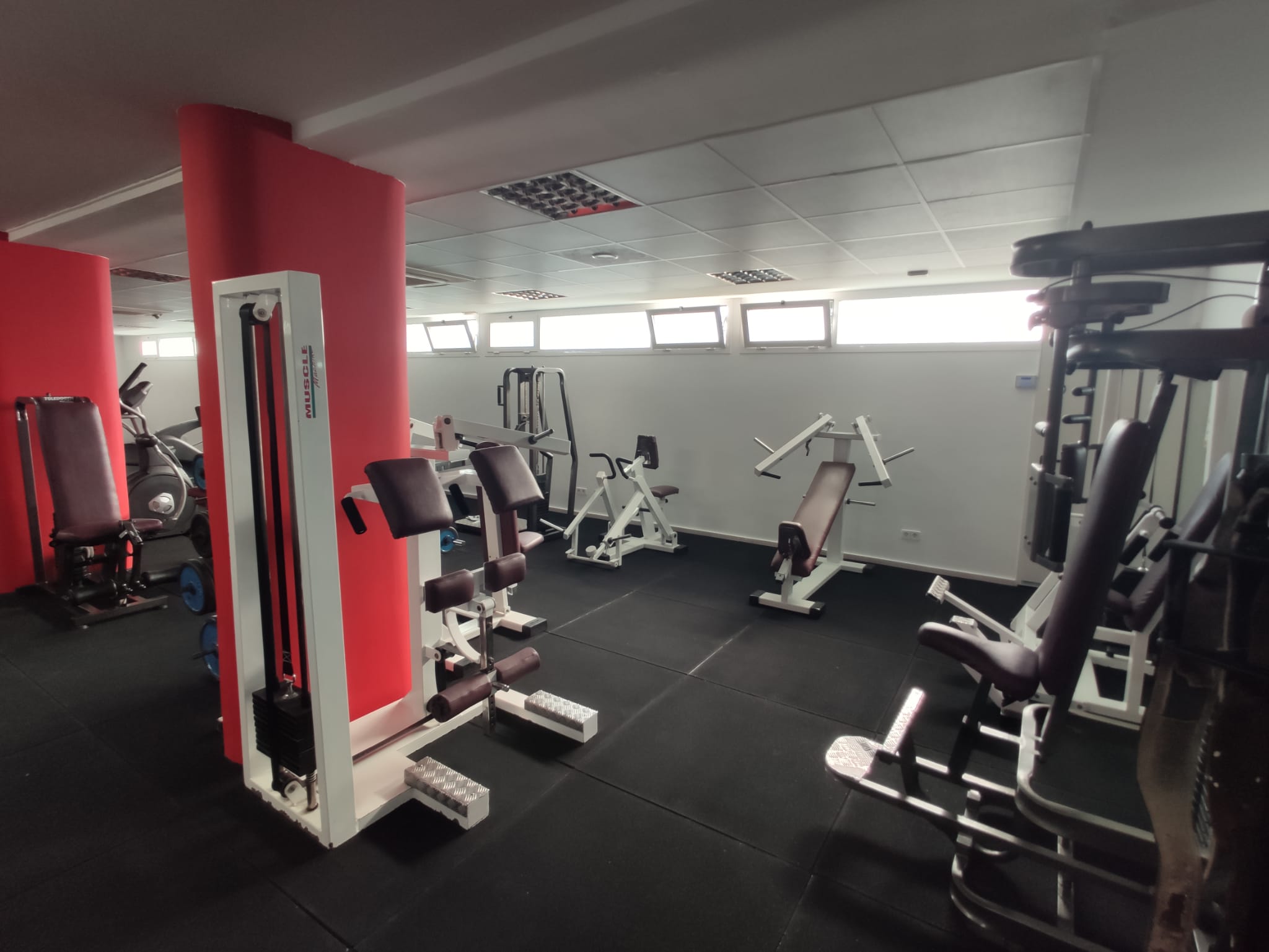

Fine dense-grained gymnasium tile

COMPOSITION: SBR granulated rubber recycled from tires with polyurethane

PRODUCTION PROCESS: Molding in hydraulic presses

DIMENSIONS (at 25ºC)

• Weight m2/1cm: 9000 gr +-10%.
• Widths: 100cm +/-3%.
• Lengths: 100cm +/-3%.
• Thickness: 15, 20, 25, 30, 35, 40 mm +/-10%.

THERMAL TOLERANCE: +/-3% for each 10ºc temperature variation.

REVERSE: Smooth

COLORS: Black ; Black-Gray 10% EPDM ; Gray ; Other colors available upon request.

HARDNESS: 50 SHORE AT +/-10%.

BREAKING STRENGTH:
1.50 N/mm2 +/-10%.

SLIP TEST: R10

DENSITY: 0.9 gr/cm 3

ACOUSTIC INSULATION: >17db

ABRASION RESISTANCE: >560 TABER EN ISO 5470-1:2001

TEAR STRENGTH: 20 Kg/cm2 +/-10%.

ELECTRICAL PROPERTIES: -0.7kV

OPERATING TEMPERATURE: -20ºC/70ºC

CHEMICAL RESISTANCE: Not resistant to acids, solvents, hydrocarbons, grease and oils.

TEMPERATURE RANGE OF USE: -20ºC/70ºC

FALL TEST: Yes

FIRE RESISTANCE: ISO 9239 -1 :2010 PASS Cfl S1 EN13501

PACKAGING: ON PALLETS

REACH: Yes

INSTALLATION: Glued

MANUFACTURED IN: Europe

ADVANTAGES

• Stable and shock absorbing
• Wet and dry slip resistant
• Protects joints during physical exercise and workouts
• Decorative and attractive design with easy cleaning and maintenance
• Quick and easy installation without tools or glue
• Self-supporting
• Resistant to weights and impacts
• Minimizes noise from falling weights and equipment
• High resistance
• Acoustic insulation
