BASKET EUROSCHOOL BASKET V-1,65, DOUBLE ARM, WITH PLATE – EB024 EB025

[vc_empty_space height=”5px”][icon_text box_type=”normal” icon_pack=”font_awesome” fa_icon=”fa-download” icon_type=”normal” icon_size=”fa-3x” icon_position=”left” text=”Download our data sheet” target=”_blank” icon_color=”#218bbf” text_color=”#333333″][download id=”23388″][vc_empty_space]

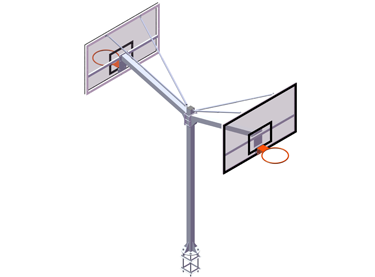

The EUROSCHOOL DOUBLE BASKETBALL basket is manufactured according to regulations and is designed to be installed between adjacent basketball fields without the need to install two independent baskets, and can be placed on any type of outdoor surface.

Structure
It is basically composed of three 100x100x3 square profiles. The foot of the basket is fixed to the floor by means of a plate and 4 reinforcing plates. The plate is screwed to the basket anchor, supplied by Euronix, allowing the fixing of the basket and ensuring the stability and rigidity of the structure.
The arms of the basket are attached to the foot, through a bolted joint between them, embracing the foot; thus allowing height adjustment and increasing the strength of the joint.

Frame stabilizing system
The basket frames are fully stabilized by means of two stiffeners (each one) formed by two telescopic tubes, which join the profile of the structure with the frame and are adjusted to guarantee 100% straightness of the board, thus obtaining the desired perpendicularity of the game with respect to the ground.

Basket frames
The frames of the basket meet the dimensions of 1800mm.x1050mm, according to regulations. It is attached to the basket arms by means of a bolted joint. Two angle brackets are welded to the back of the frames so that the stiffeners can be bolted to them.
In addition, the basket frames are fitted with fully standardized hoops and nets.

Materials:
