EUROGROUND RACK MINIBASKET V-1,65m- EB026 EB027

EUROGROUND monotube baskets are manufactured according to the UNE EN 1270:2006 Standard.

They correspond to Type 7: Fixed to the ground; and are designed to be installed on any type of outdoor surface.

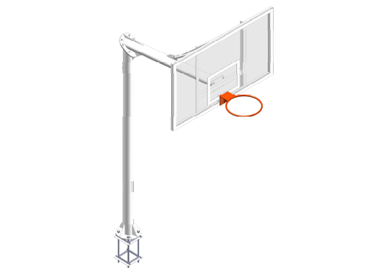

The EUROGROUND basket is mainly composed of:

• Structure (tubular)
• Frame stabilizing system
• Frame (and accessories)
• Anchoring

Structure
The structure is composed of two large diameter tubes joined at an angle by means of a double plate with bolted joint, very resistant with 3 reinforcement plates, to ensure the stability of the structure.

Frame stabilizing system
The frame of the basket is completely stabilized by two tubes that join the profile of the structure with the frame, guaranteeing 100% straightness of the board, thus obtaining the desired perpendicularity of the game with respect to the ground.

Basket frame
The frame of the basket complies with the dimensions according to standards. It is attached to the basket structure by means of a robust profile.
The board can be:

• Minibasket: 1200 mm. x 900 mm (methacrylate, fiber or metallic)

Two angle brackets are welded to the back of the frame to ensure the strength of the assembly.
In addition, the basket frame is fitted with a fully standardized hoop and net.

Anchoring
The basket is completely fixed to the floor by means of a plate with 4 bevels. The plate is screwed to the anchor, which is fixed to a concrete footing below the floor. This anchorage forms a sturdy block that ensures the rigidity and stability of the basket at all times.
